Product Details:
Application    Hospital, Clinical Purpose

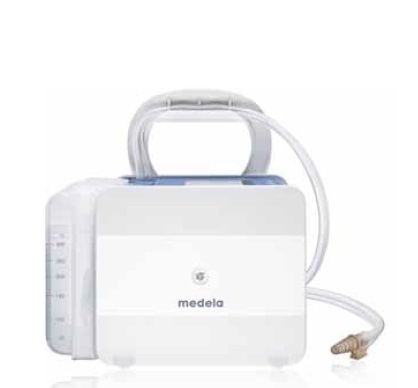

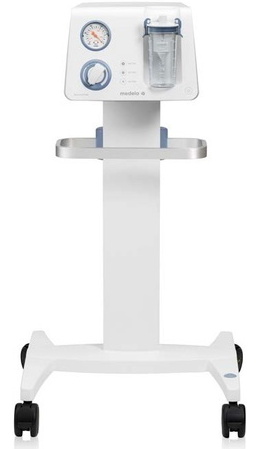

Providing reliable and simple suction, hygienically. The Basic pump is a reliable and simple suction pump available for all applications in the hospital, clinic or doctor’s practice that require a high-vacuum setting, including endoscopy, airway suction, vacuum assisted cesarean/delivery and wound drainage.

Keeping it simple.In developing the Basic suction pump, Medela strived for simplicity. Turn the pump on with either the foot switch integrated into the trolley or by touching the button on the housing. Adjust the vacuum with the intuitive membrane vacuum regulator. Optional accessories can be attached to meet your needs. Simplified inner construction minimises the effort required for routine checks, saving costs.

Working when and how it should. Medela’s Swiss ingenuity has led to the long lifetime for which our pumps are renowned. Company know-how, durable materials, and an intelligent configuration all contribute to the reliability of the Basic suction pump.

Addressing hygienic concerns. Hygiene concerns influenced both the design and functionality of the Basic suction pump and its optional accessories. Medela paid close attention to the location and design of operating elements in order to reduce potential contamination risks.

Reliability – Made in Switzerland:

Medela's 50+ years of experience in medical vacuum led us to refine the drive unit in the Basic suction pump. The cylinders’ heat-resistant high-tech material supports long-lasting, dependable operation. A flat spring with patented technology is just one of the many features integrated into this pump.

Hygiene factors:

The smooth, single-piece hood design of the pump facilitates cleaning. Materials able to withstand potent disinfection agents were chosen. The Clean Touch on / off button on the housing allows you to switch the pump on and off with a simple touch: no gaps, no grooves. The foot on/off switch integrated into the trolley leaves hands free for surgery.

Sophisticated simplicity:

The Medela Basic suction pump is hygienic, reliable and easy to use. Its membrane vacuum regulator builds up the vacuum within seconds, making the Basic suction pump suitable for applications that demand rapid suction and quiet operation. The pump is available in rack, portable and mobile models for convenient placement in endoscopy towers, at the patient's bedside or in the operating theatre. Complete the unit with the Disposable or the Reusable Fluid Collection System from Medela’s wide range of accessories.

Benefits:

• Basic is a reliable, hygienic and user-friendly suction pump.
• Our Swiss development and manufacturing process yields mechanical precision to provide excellent performance.
• Simple construction and easy to access internal parts minimize efforts during routine checks.
• Reliability through technology adapted to modern needs, durable materials, reduced amount of wear and tear parts.
• A wide range of accessories offers a complete system adaptable to your individual needs.

Accessories:

• Disposable Collection System
• Disposable suction liners and reusable PC jars offer a hygienic, simple handling and efficient fluid management.
• Sizes: 1.5 and 2.5 litres.

Reusable Collection System:

• Autoclavable PSU jars and lids collect secretions easily and economically.
• Sizes: 1, 2, 3 and 5 litres.

Range of filters:

• To protect the pump from overflow, to protect the environment from bacteria or to neutralise odour.

Range of tubing:

• Made from silicone or PVC

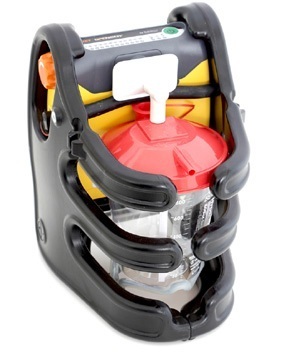

Ambujet Portable Suction Unit 800 D 20G suction device is the result of long term research investments. The collaboration between rescue operators and engineers has taken Jet to new levels of reliability, lightweight and at the same time being extremely user friendly as no other portable suction device has ever been. Jet has an unprecedented suction flow rate in its category - 32 L/min. and is the only device with the easy access for rapid battery substitution. The collection vase, being connected directly to the suction unit reduces the number of components and costs and is also quick and easy to insert. Jet is the first suction device in the world to be equipped with an integral protection frame in Polyethylene which protects from any kind of damage due to dropping, collisions, falls. A simply indestructible device as demonstrated by the UNI EN 1789 certification. The exceptional stability is obtained thanks to the position of the gravity centre in the area with the maximum distance from the external frame. In addition Ambujet is supplied complete with a 20 g certified wall fixing system that is however very easily released by just pressing the button on the front.

Technical Data:

• Dimensions: 200 x 225 x 285 mm
• Dimensions with hook: 200 x 250 x h320 mm
• Suction device weight: 2,65 kg
• Wall fixing hook weight: 0,8 kg
• Vacuum Range from: 50 to 550 mmHg
• Free flow Suction: 32 l/min.
• Noise level: 70 dB
• Fall protection: Yes
• Electrical connection requirement: 100-240 VAC 47-63 Hz 0,75
• A max; 12VDC 33W max
• Battery: 12V DC Ni-MH
• Battery use: 30 min. ON, 30 min. OFF
• Loading time: 5 hours
• Cable: 12V No, integrated in hook
• Power cable: 220V No
• Vase capacity: 800 ml
• Vase type: Single use
• Patient tube: 1,80 mt
• Temperature for use: From 0°C to +45°C
• Temperature storage: From -40°C to +70°C
• Humidity From: 0 to 95%
• Certified hook: Yes EN 1789 (20G)
• Auto power hook: Yes
• Grade IP: IP 12
• Shoulder strap: Yes
• Latex: Free SC75500D: AMBUJET P 800 D 20G

Additional Information:

• Item Code: P800-D-20G

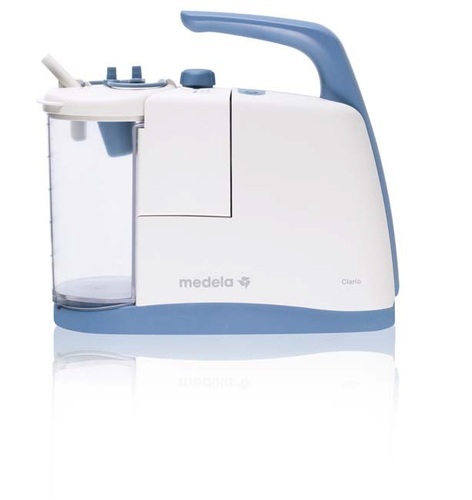

Home healthcare teams and patients in need of airway suctioning appreciate the Clario suction pump because of its clever engineering and smart design.

Clario’s modular design consists of 3 main parts for easy, uncomplicated assembly:

• Drive unit
• Canister
• Safety Chamber

Fast Facts:


• Medela offers healthcare professionals 50 years of experience in medical vacuum technology.
• Our swiss development and manufacturing process yields mechanical precision to guarantee excellent performance.
• Clario is appreciated in the home care setting for reliability and ease of use.
• Clario offers modern yet timeless design. It does not look like a typical medical device.
• Clario is highly recommended by Home Healthcare Teams.
• Clario needs little time and effort for cleaning.
• Clario's threefold hygienic design helps eliminate cross-contamination.
• Clario increases mobility, thus improving the quality of life.
• 2 years warranty on device, 6 months warranty on battery.

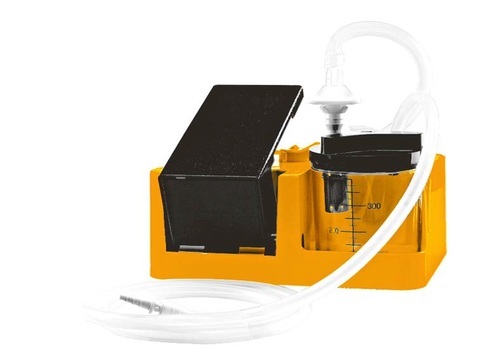

RES-Q-VAC is a suction device designed to collect non inflammable substances of only medical origin.

RES-Q-VAC is an easy to use portable suction device particularly indicated for emergency situations; it does not require any power supply and it can be operated using the hands, knees or feet.
It is used to free the patient's airways rapidly, safely and reliably.

All of its components are easy to remove and wash: RES-Q-VAC can be completely autoclaved. The accurate connections and the robust structure guarantee a long life span.

The intervention on the device on behalf of the patient is not to be considered.

Technical Details:

• Dimensions: 120 x 225 x 170
• Weight: 1.3 kg
• Max. vacuum: 300 mmHg /, 400 mbar
• Average flow: 22 L/min
• Volume of collection jar: 380 ml

Additional Information:

• Item Code: RES-Q-VAC

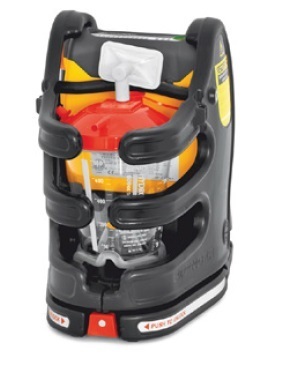

The Home Jet 800 D suction device is the result of long term research investments. The collaboration between rescue operators and engineers has taken Jet to new levels of reliability, lightweight and at the same time being extremely user friendly as no other portable suction device has ever been. Jet has an unprecedented suction flow rate in its category - 32 L/min. and is the only device with the easy access for rapid battery substitution. The collection vase, being connected directly to the suction unit reduces the number of components and costs and is also quick and easy to insert. Jet is the first suction device in the world to be equipped with an integral protection frame in Polyethylene which protects from any kind of damage due to dropping, collisions, falls. The exceptional stability is obtained thanks to the position of the gravity centre in the area with the maximum distance from the external frame.

Accessory:

• SC75012E Jet Side Bag
• SC73017E 220V/12V power adapter

Technical Details:

• Dimensions: 200 x 225 x h285 mm
• Suction device weight: 2,65kg
• Vacuum Range: From 50 to 550 mmHg
• Free flow Suction: 32 l/min.
• Noise level: 70 dB
• Bumpers: Yes
• Electrical connection requirement: 100-240 VAC 47-63 Hz 0,75 A max; 12VDC 33W max
• Battery: 12V DC Ni-MH
• Battery use: 30 min. ON, 30 min. OFF
• Loading time: 5 hours
• Cable: 12V Yes
• Power cable: 220V No
• Vase capacity: 800 ml
• Vase type: Single use
• Patient tube: 1,80 mt
• Temperature for use: From 0°C to +45°C
• Temperature storage: From -40°C to +70°C
• Humidity From: 0 to 95%
• Certified hook: No
• Auto power hook: No
• Grade IP: IP 12
• Shoulder strap: Yes

Additional Information:

• Item Code: HOME-JET-800-D

The impressive simplicity of the shapes of this model, together with the distinguished technical characteristics which guarantee extreme functionality, immediately attract attention.

The rectangular vacuumeter perfectly integrates with the shapes of the body and is placed in a protected position, perfectly visible from above. The high-capacity engine does not need any maintenance and easily creates high grades of vacuum (-550 mm Hg) and high capacity (23 L/min).

The Porta Vac is equipped with a local power source plug, allowing quick recharging of the batteries and/or functioning with net-energy.

Porta Vac can be supplied with a comfortable carrying bag, which can contain not only the suction device, but all accessories as well.

Another important accessory is the metal wall-support for fixation on emergency vehicles.

Technical Details:

• Dimensions: 370 x 100 x 240 mm
• Weight: 5,5 kg
• Max Vacuum: - 550 mm Hg
• Max capacity: 23 L/min
• Power: 12 / 110 / 220 V
• Container: Yes
• Filter: 1000
• Silicone tube: Yes
• Use temp: 0°C to +40°C
• Storage temp:-10°C to +50°C
• Humidity: 95%
• Wall support: Yes
• 10G support: Yes
• Light signals:x Yes

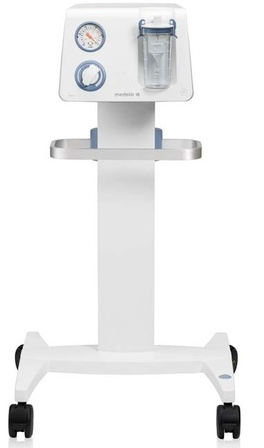

Providing reliable and simple suction, hygienically. The Dominant Flex suction pumps can be used for general suction or as a backup to wall suction in the following applications in the hospital, ambulatory surgery center, clinic and doctors’ practice: general surgery, liposuction, endoscopy, airway suction, neurosurgery and wound drainage.

Choose your flow rate. There is now no need to change pumps when you require a different flow rate. The standard operation for Dominant Flex is at 50 l/min. When you require a faster vacuum build-up, touch the CleanTouch button for 60 l/min. For sensitive operations in which minimal noise is key, just touch the 40 l/min button to reduce the noise level.

Choose reliability. Our development process for new pumps always takes customers’ needs into account. Medela uses durable materials, tests and retests new designs, and implements intelligent engineering solutions to continue our tradition of providing long-lasting, high-quality pumps.
Choose your hygienic protection. Dominant Flex’s housing design, CleanTouch buttons, and the location of its operating elements all help reduce the time necessary for cleaning. For further protection you can choose from a wide range of filters. Our Fluid Collection Systems provide integrated protection.

A simple choice. Our team of experts has successfully combined clever engineering and simple operation. The inner construction of Dominant Flex reduces maintenance. One-touch operation is intuitive and easy, with LEDs indicating theactive mode.

Benefits:

• Dominant Flex is the first Medela suction pump with adaptable flow rates, offering you the choice of faster vacuum build-up or even quieter operation.
• Our Swiss development and manufacturing process yields mechanical precision to provide excellent performance.
• Reliability through 50+ years of experience adapted to modern needs.
• Simplified pump interior helps reduce maintenance.
• User-friendliness through clever design and a wide range of compatible accessories.
• 5 years warranty.

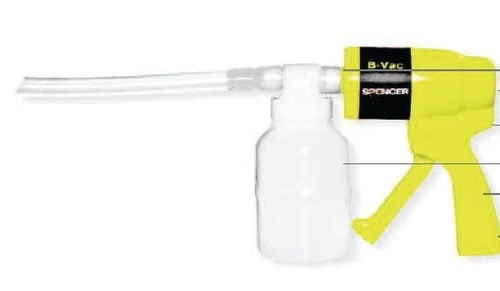

B-Vac is an aspirator for secretions which is easy to use, portable, stable and compact and which generates a vacuum of -550 mmHg. Just one hand is sufficient to generate the vacuum. An essential design allows for ambidextrous use. In order to guarantee efficiency and precision the B-Vac incorporates a novel and practical system which permits selection for use on either adult or paediatric patients. In order to guarantee viral and bacterial protection the product has an easily replaceable filter.
The 110 ° rotation of the tube allows for better access even in restricted areas. The use of the latest generation of techno polymers for the construction ensures a long life and easy sanitation. Further information on the comparison chart pg. 424.

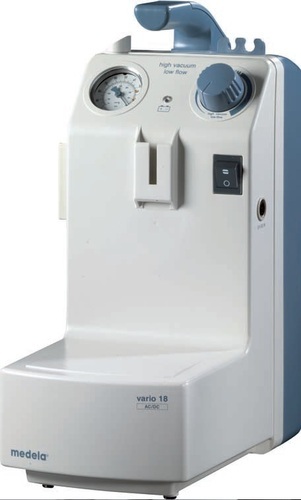

Vario Suction Pump may be used in many different situations – on the hospital ward, in the emergency department, in the postoperative phase, in the nursing home, in the doctor’s practice or at home. It is suitable for many different needs.

Features:

• Lightweight and compact
• Ultra-quiet and low vibration
• Available in different versions
• Rechargeable-battery or electric operation
• View PDFYes! I am interested

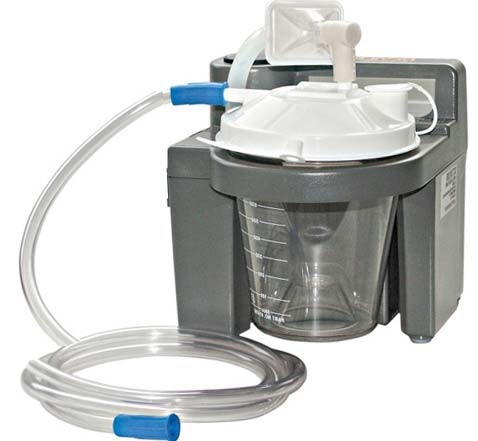

Vacu Aide Compact is the expression of a high quality technology, studied, projected and produced to face all emergency situations with efficiency.

You will be surprised with its compactness, lightness and versatility. The engine which does not require any maintenance, guarantees a capacity of 29 L/min a -600 mm Hg.

Thanks to the Quiet-Drive technology, if used for home care or hospitals you will appreciate its silence. All noise and vibrations are minimal.

Vacu Aide Compact is a new technological development: we have reduced the power consumption to guarantee more than one hour of use with battery supply and have improved performance to assure a whole day of continuous function with a 12 Vdc or a 220 V supply.

Its professional aspect will naturally fit into ambulances, backpacks or hospitals.

Great performance within one, extremely light and compact portable suction pump.

Great performance that other competitors will have to deal with.

Technical Details:

• Dimensions (mm): 229 x 180 x 205
• Weight: 3.1 kg
• Max Vacuum (mmHg): Adjustable from
• Max capacity: 27 ± 2 L/min
• Source: Battery12 volt 220 volt
• Autoclavable container: Si
• Vol. supplied container : 800 ml
• Filter: Si
• PVC tube: Si
• Temp. of use: 0°C + 40°C
• Temp. for storage: -4°C + 70°C
• Humidity: 95%
• Wall support: Yes
• 10G Support: Yes
• Light signals: Yes
• Colors available: Grey / Yellow
